Teflon(R) Vacuum Wands for 5-inch Semiconductor Wafer Handling

Item Valve Type Tip Material Body Tip
F001-Z-02-3F NC PCTFE F001-Z (with 110) 02-3F
F001-Z-02-PK NC PEEK F001-Z (with 110) 02-PK
F001-Z-02-VP NC Vespel(R) F001-Z (with 110) 02-VP
F002-Z-02-3F NO PCTFE F002-Z (with 110) 02-3F
F002-Z-02-PK NO PEEK F002-Z (with 110) 02-PK
F002-Z-02-VP NO Vespel(R) F002-Z (with 110) 02-VP
F003-Z-02-3F NO+SW PCTFE F003-Z (with 110) 02-3F
F003-Z-02-PK NO+SW PEEK F003-Z (with 110) 02-PK
F003-Z-02-VP NO+SW Vespel(R) F003-Z (with 110) 02-VP
Please order the Body and Tip separately.
e.g. F001-Z (with 110) and 02-3F

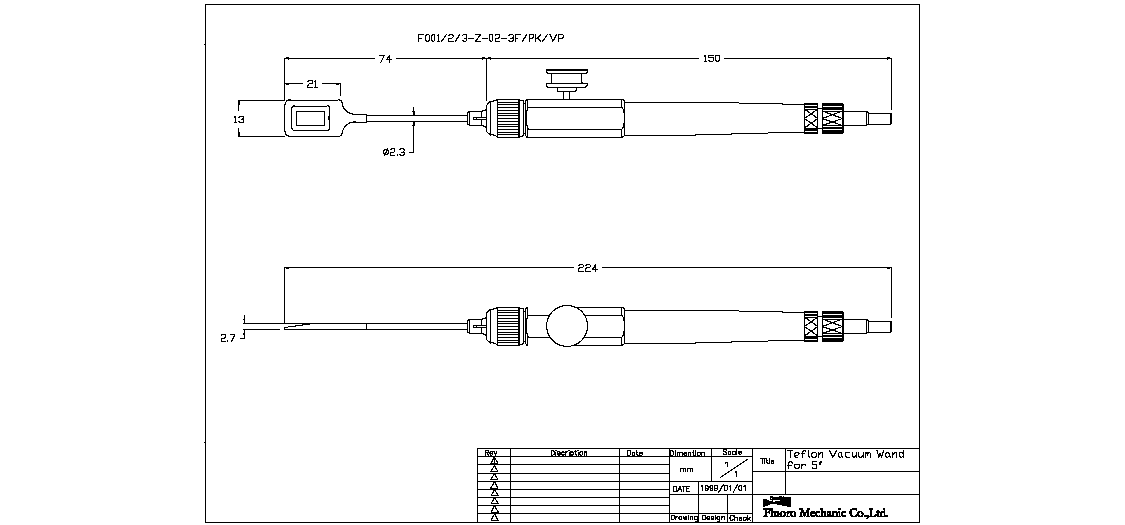

F001/2/3-Z-02-3F
Fluoro Mechanic Vacuum Pick Up System for Silicon Wafer Processing: Teflon Vacuum Wafer Wand for 125mm (5-inch) Semiconductor Silicon Wafer Handling: The unique valve ensures reliable suction a semiconductor wafer. ESD tweezers and vacuum pens for SMD/die handling are available.
Length: 224mm, Weight: 33g

F001/2/3-Z-02-PK
Fluoro Mechanic Vacuum Pick Up Tool for Wafer Processing: Teflon Vacuum Wand for 125mm (5-inch) Semiconductor Silicon Wafer Processing: The optically polished wafer tip provides excellent adhesion to a wafer. ESD safe tweezers and vacuum pencils for die/SMD handling are available.
Length: 224mm, Weight: 33g

F001/2/3-Z-02-VP
Fluoro Mechanic Vacuum Pick Up System for Semiconductor Wafer Processing: Teflon Vacuum Tweezers for 125mm (5-inch) Semiconductor Silicon Wafer Processing: The wand body can be easily detached from the tubing connected to the vacuum pump. ESD tweezers and vacuum pens for SMD/die handling are available.
Length: 224mm, Weight: 33g

Accessories / Parts

Click on the photo to download the drawing.

Vacuum Wands for die and small diameter semiconductor wafer handling

Please contact our distributor for more information.
