Teflon(R) Vacuum Wands for 6-inch Semiconductor Wafer Handling

Item Valve Type Tip Material Body Tip
F001-X-01-3F NC PCTFE F001-X (with 106) 01-3F
F001-X-01-PK NC PEEK F001-X (with 106) 01-PK
F001-X-01-VP NC Vespel(R) F001-X (with 106) 01-VP
F002-X-01-3F NO PCTFE F002-X (with 106) 01-3F
F002-X-01-PK NO PEEK F002-X (with 106) 01-PK
F002-X-01-VP NO Vespel(R) F002-X (with 106) 01-VP
F003-X-01-3F NO+SW PCTFE F003-X (with 106) 01-3F
F003-X-01-PK NO+SW PEEK F003-X (with 106) 01-PK
F003-X-01-VP NO+SW Vespel(R) F003-X (with 106) 01-VP
Please order the Body and Tip separately.
e.g. F001-X (with 106) and 01-3F

Other variations available

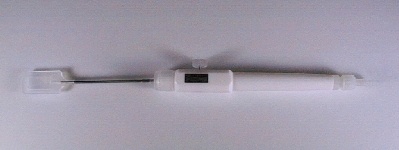

F001/2/3-X-01-3F
Fluoro Mechanic Vacuum Pick Up System - Teflon Vacuum Wafer Tweezers for 6-inch Semiconductor Silicon Wafer Handling: Our unique valve ensures reliable suction and release of a semiconductor wafer. Vacuum pens for SMD/die and ESD safe wafer wands for 12-inch wafer handling are available.
Length: 237mm, Weight: 34g

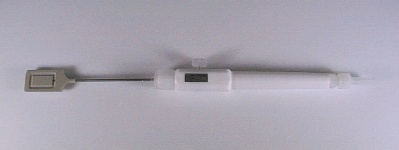

F001/2/3-X-01-PK
Fluoro Mechanic Vacuum Pick Up System - Teflon Vacuum Wand for 150mm(6-inch) Silicon Wafer Processing: The well polished inner wall of the valve part minimizes particle generation. ESD tweezers and wafer wands for 300mm wafer handling are available.
Length: 237mm, Weight: 34g

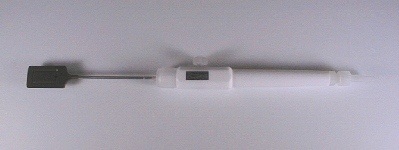

F001/2/3-X-01-VP
Fluoro Mechanic Vacuum Pick Up System - Teflon Vacuum Tweezers for 150mm (6-inch) Wafer Processing: The optically polished wafer tip provides excellent adhesion to a wafer. ESD safe vacuum wafer wands for die/SMD to 12-inch silicon wafer handling are available.
Length: 237mm, Weight: 34g

Accessories / Parts

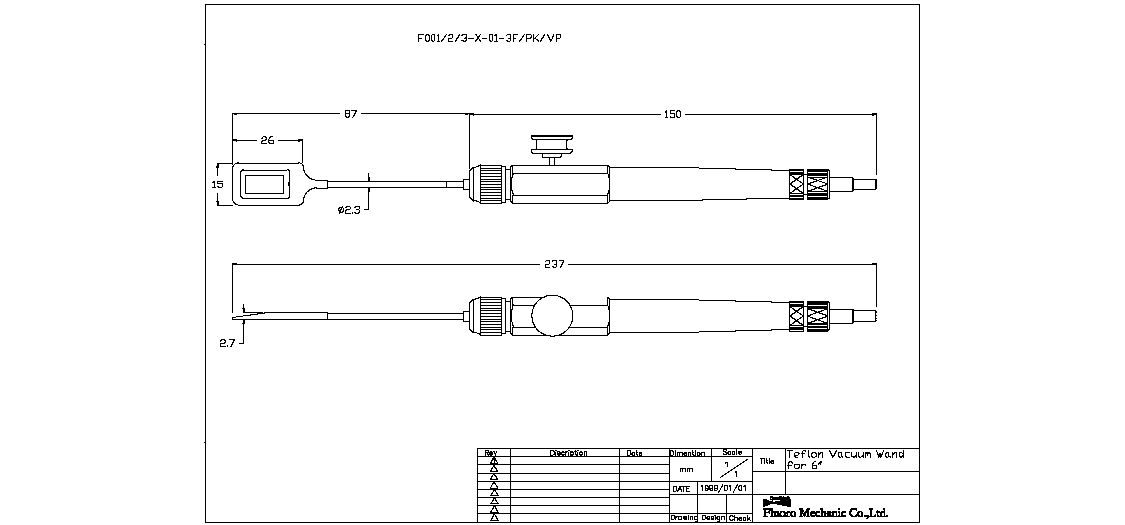

Click on the photo to download the drawing.

Vacuum Wands for die and small diameter semiconductor wafer handling

Please contact our distributor for more information.
