Teflon(R) Vacuum Wands for 6-inch Semiconductor Wafer Handling

Item Valve Type Tip Material Body Tip
F001-X-09-3F NC PCTFE F001-X (with 100) 09-3F
F001-X-09-PK NC PEEK F001-X (with 100) 09-PK
F001-X-09-VP NC Vespel(R) F001-X (with 100) 09-VP
F002-X-09-3F NO PCTFE F002-X (with 100) 09-3F
F002-X-09-PK NO PEEK F002-X (with 100) 09-PK
F002-X-09-VP NO Vespel(R) F002-X (with 100) 09-VP
F003-X-09-3F NO+SW PCTFE F003-X (with 100) 09-3F
F003-X-09-PK NO+SW PEEK F003-X (with 100) 09-PK
F003-X-09-VP NO+SW Vespel(R) F003-X (with 100) 09-VP
Please order the Body and Tip separately.
e.g. F001-X (with 100) and 09-3F

Other variations available

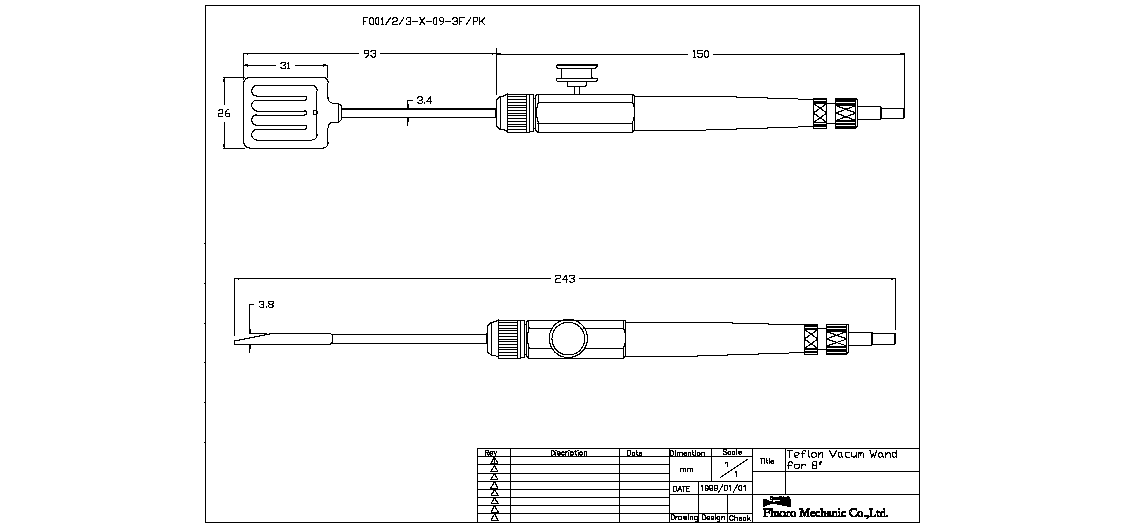

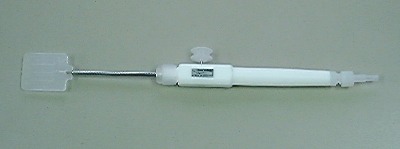

F001/2/3-X-09-3F
Vacuum pick up tool for wafer processing: ESD safe tweezers and vacuum pens for SMD/die handling are available. Teflon Vacuum Wafer Tweezers for 150mm(6-inch) Semiconductor Silicon Wafer Handling
Length: 243mm, Weight: 41g

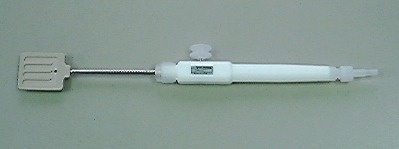

F001/2/3-X-09-PK
Fluoro Mechanic Vacuum pick up tool for semiconductor wafer processing: The optically polished wafer tip provides excellent adhesion to a wafer. ESD tweezers and vacuum pens for die/SMD handling are also available.
Length: 243mm, Weight: 39g

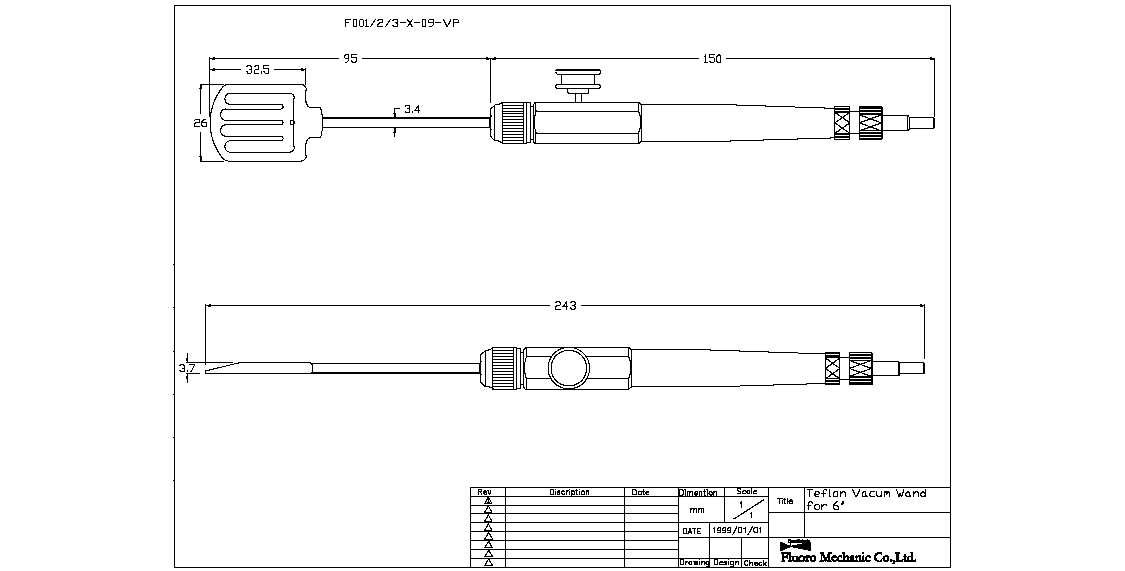

F001/2/3-X-09-VP
Vacuum pick up tool for silicon wafer processing: The well polished inner wall of the valve part minimizes particle generation. ESD tweezers and vacuum pencils for SMD/die handling are available. Teflon Vacuum Tweezers for 150mm (6-inch) Semiconductor Silicon Wafer Processing
Length: 243mm, Weight: 39g

Accessories / Parts

Click on the photo to download the drawing.

Vacuum Wands for die and small diameter semiconductor wafer handling

Please contact our distributor for more information.
